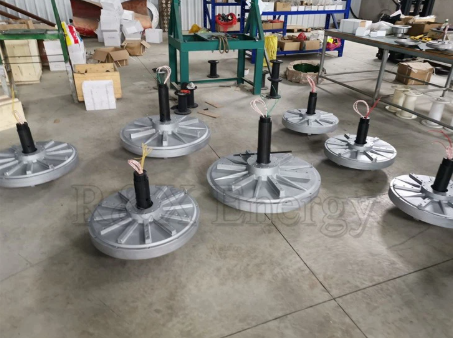

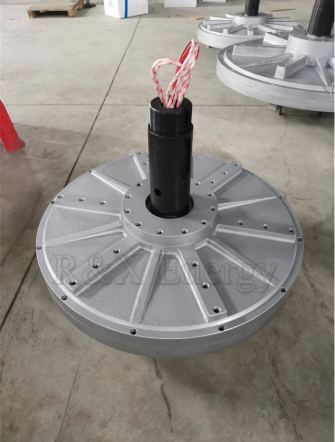

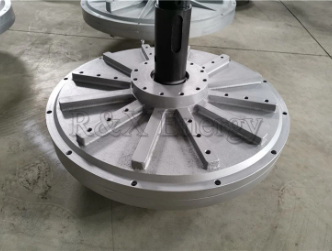

This 10KW axial flux coreless permanent magnet generator is specially designed for low-speed renewable energy systems such as vertical wind turbines. Its advanced coreless design eliminates cogging torque, allowing the generator to start easily even at low wind speeds, making it ideal for efficient energy generation in variable conditions.
With no iron core, the generator minimizes energy losses such as hysteresis and eddy currents, achieving high efficiency up to 85–95%. The lightweight construction and low rotational inertia ensure quick response to wind speed changes, improving overall system performance.
The flat, compact “pancake” design allows easy integration into turbines and other applications, while its open structure enables natural air cooling, reducing heat buildup and extending lifespan. Additionally, the generator operates with minimal noise and vibration, ensuring smooth and silent performance.
Its ability to function efficiently even with a larger air gap makes it more tolerant to environmental and mechanical variations, ensuring long-term durability and reliability.
Key Features
- Coreless design (zero cogging torque)
- High efficiency (up to 95%)
- Low RPM operation (100 RPM)
- Lightweight & compact structure
- Fast response to wind speed changes
- Natural air cooling system
- Low noise & vibration
- Long lifespan & reliable performance
Technical Specifications
- Rated Power: 10KW
- Speed: 100 RPM
- Type: Axial Flux Coreless Permanent Magnet Generator
- Structure: Coreless (No Iron Stator)
- Form Factor: Flat Disc / Pancake Design
- Cooling: Natural Air Cooling
- Efficiency: 85% – 95%
- No Cogging Torque: Smooth start at low wind speed
- Low Losses: No hysteresis or eddy current loss
- Low Inertia: Quick response to wind changes
- Stable Magnetic Flux: Works with larger air gaps
Applications
- Vertical Axis Wind Turbines
- Horizontal Wind Turbines
- Hydroelectric Generators
- Portable & Small Power Systems
