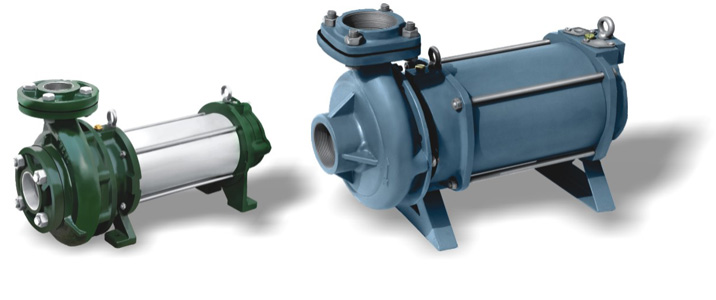

Horizontal Openwell Submersible Pumpset

OSWAL Horizontal Submersible Monoset are well known for its quality, reliability, & excellence for all type of service purpose. Horizontal Monoset are manufactured under supervision of highly qualified technical team with a stage wise rigid inspection method under TQM concepts.

Salient Feature:
High efficiency low power consumption.
Complete absence of suction trouble.
Maintenance free operation due to water Lubricated bearings
Vibration free & Noiseless operation.
World class pumps design gives higher discharge.

Specification :
Power Range	0.5 — 5.0 HP in 1 Phase 0.5 – 20 HP – 3 Phase
Speed	2880 rpm
Version	200 – 240 V, 350-440V ,A.C., 50 Hz
Discharge Range	115 – 810 lpm in 1 phase 115- 2190 Ipm in 3 Phase
Head Range	6 — 48 mtr in 1 Phase 6 — 82 mtr in 3 Phase
Suction x Delivery Size	25×25 to 80×80 mm in 1 Phase 25×25 to 100×100 mm 9 phase
Duty	S1 (Continuous)
Material of Construction
Rear Cover / Bracket	Cast Iron
Stator Shell	Cast Iron / S.S / M.S
Shaft	SS 410
Impeller	Nylon / Noryl
Pumps Casting	Cast Iron
Seal	NBR
Thrust Bearing Sat	Leaded Bronza and Composites / SS V/s Carbon / SS V/s Fiber
Diaphragm	NBR
Journal Bearings	LTB 4
Application in : • Lift from Rivers and canals for irrigation. • Domestic water supply to multistary • Swimming pool & fountains. • Water supply in commercial establishments • For ETP, STP & WTP purpose
